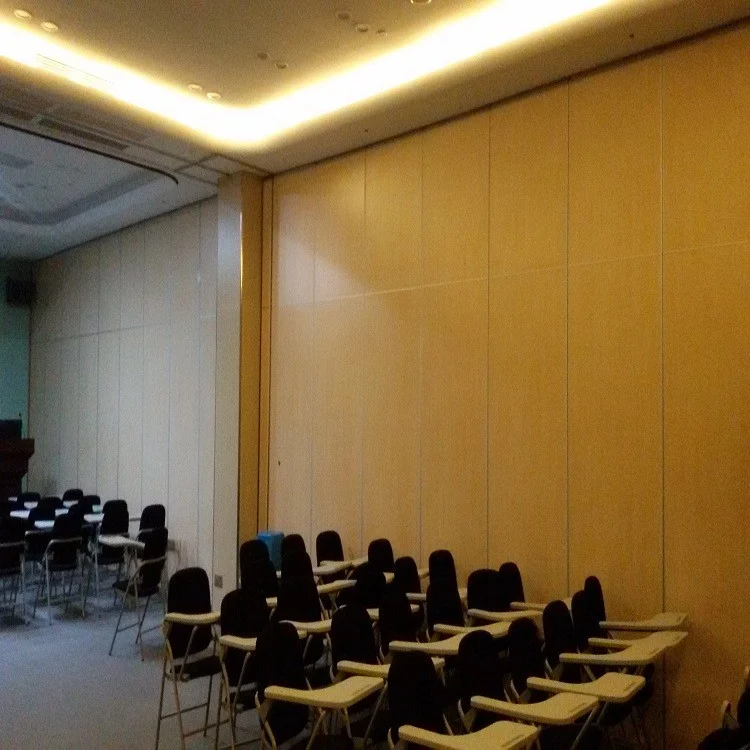

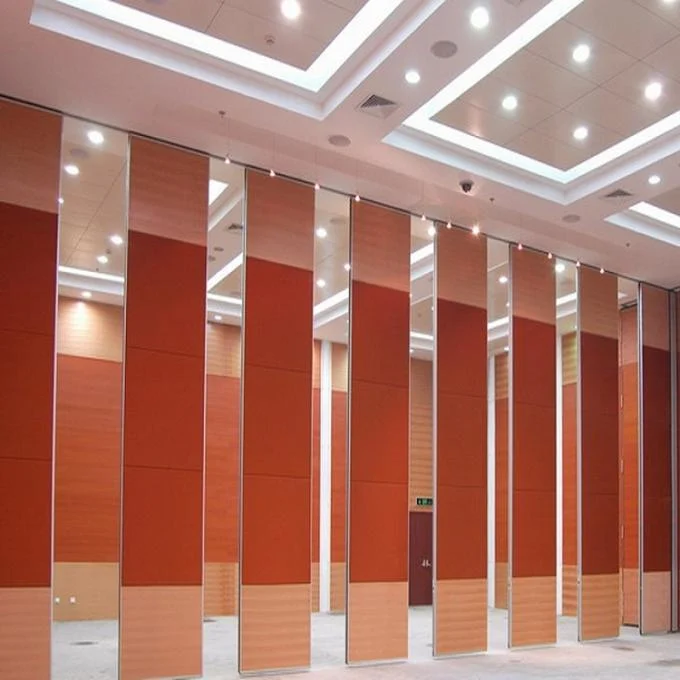

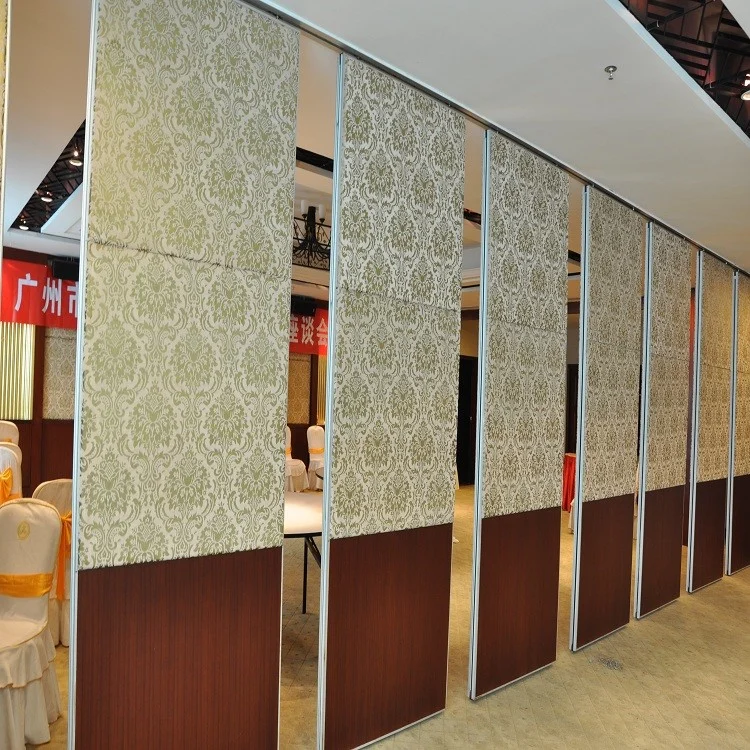

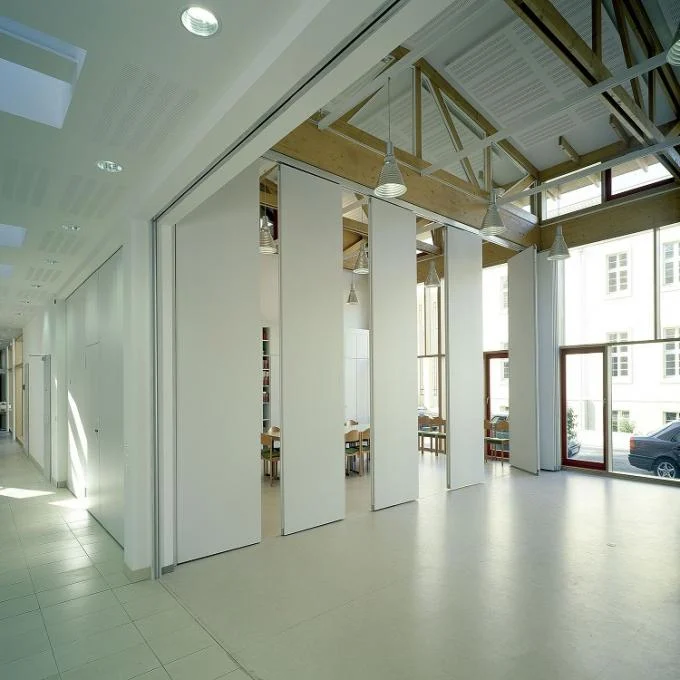

Movable Wall Design

The operable wall series is the highest specification range of fully operable ,individual – panel partition system .Acoustic insulation of up to 55 db noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple infills and a panelassembly design that allows an acoustic break between the frame and outer layer ,The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in four thiknesses ,65mm.85mm,100mm,125mm,depending on acoustic rating (from 32db – 55db )

Technical Details

The characteristic of movable partition

1: Partition products are modern architectural decoration style, space can be quickly separated, easy to use, and with sound insulation, heat insulation function

2: The wallboard is made of high-strength steel framework, soundproof cotton and decorative panels, with smooth board surface and strong collision resistance

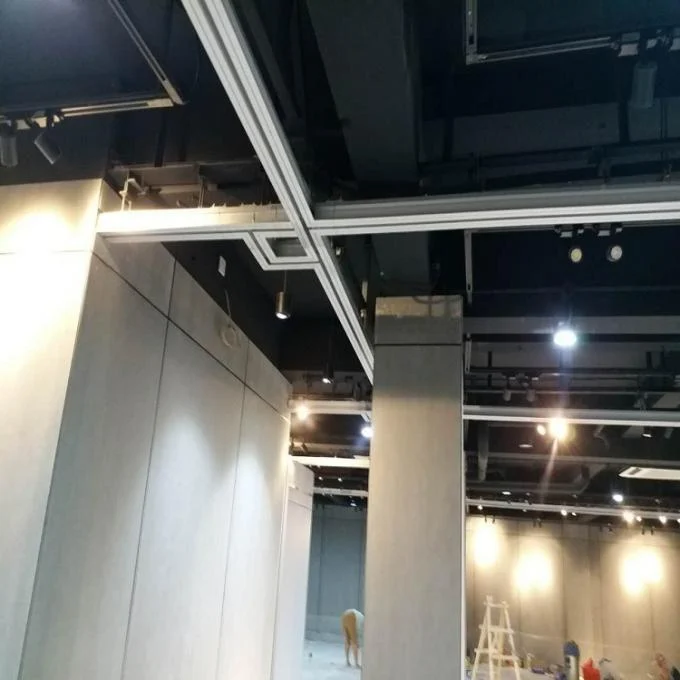

3: The wallboard is hoisted by the straight and universal rails embedded in the aluminum alloy track, and the single wheel can rotate 360 degrees and turn 90 degrees. With flexible track trend, suitable for a variety of different storage storage requirements

4: The ground is not laid track, only the track hanging in the ceiling, and decorative ceiling flat;Does not affect the overall continuity of the space, changes in the invisible

5: Wallboard surface can cooperate with a variety of finishes to achieve different decorative effects

Partitions wall usage

Our products (Movable Partitions and Acoustic Panels) are widely used in the hotel banquet halls, meeting rooms, exhibition halls, conference rooms, international convention centers, KTVs, upscale restaurants, office buildings, schools, hospitals auditorium, stadium and so on
