Product Description

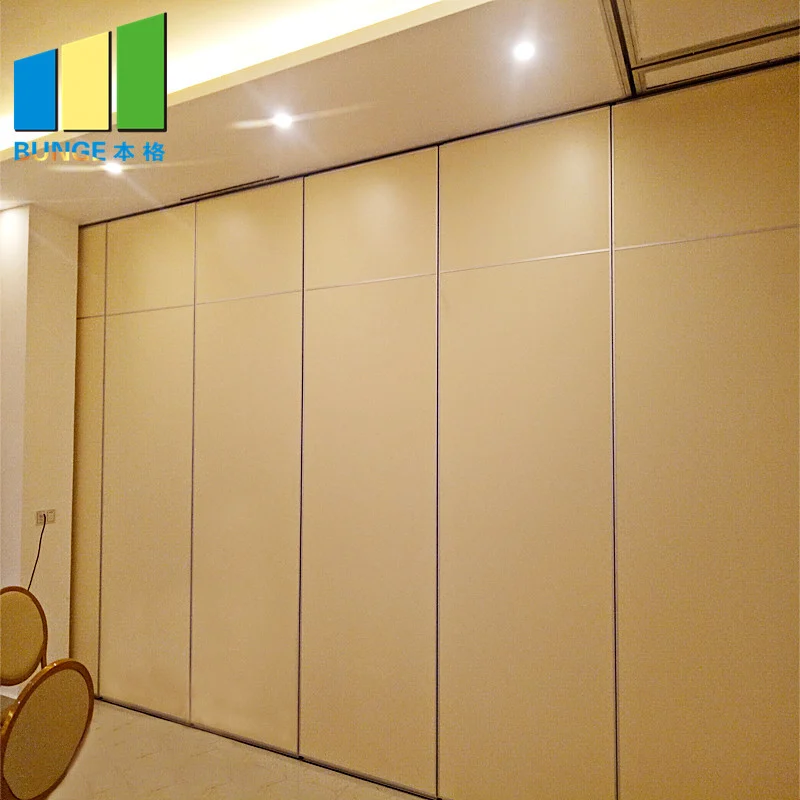

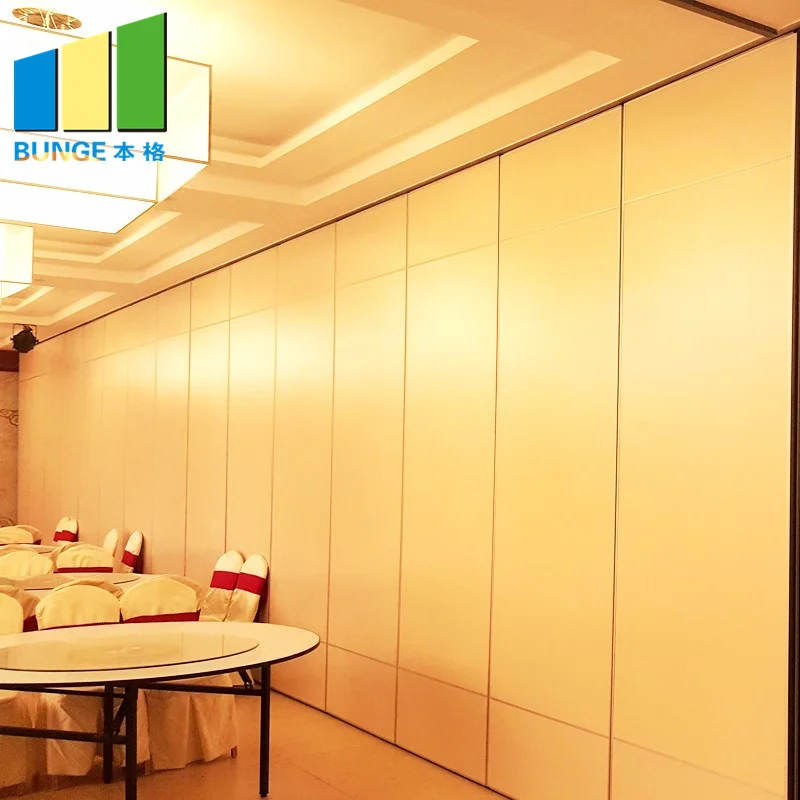

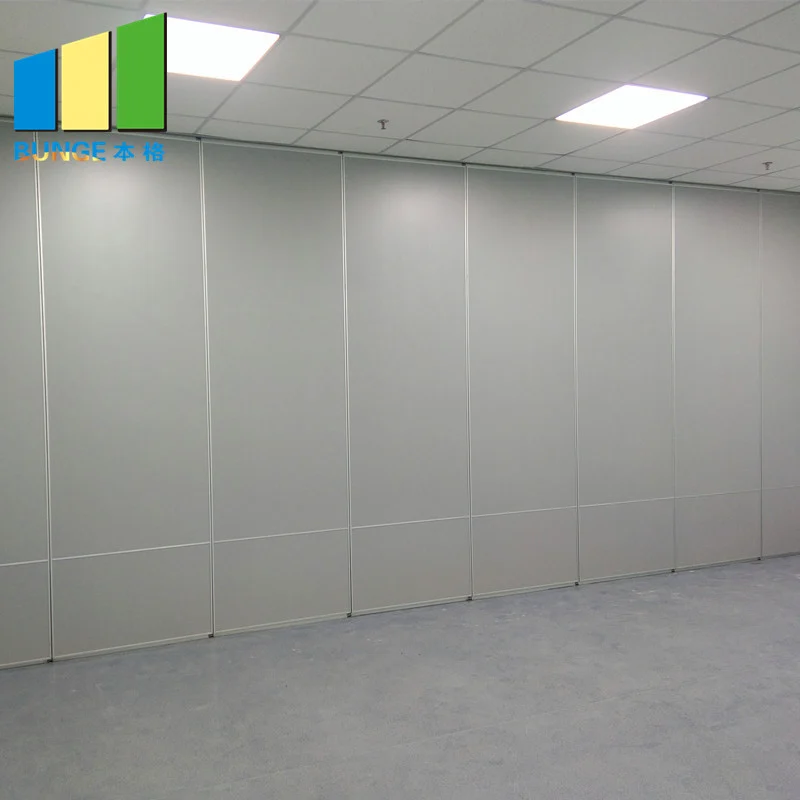

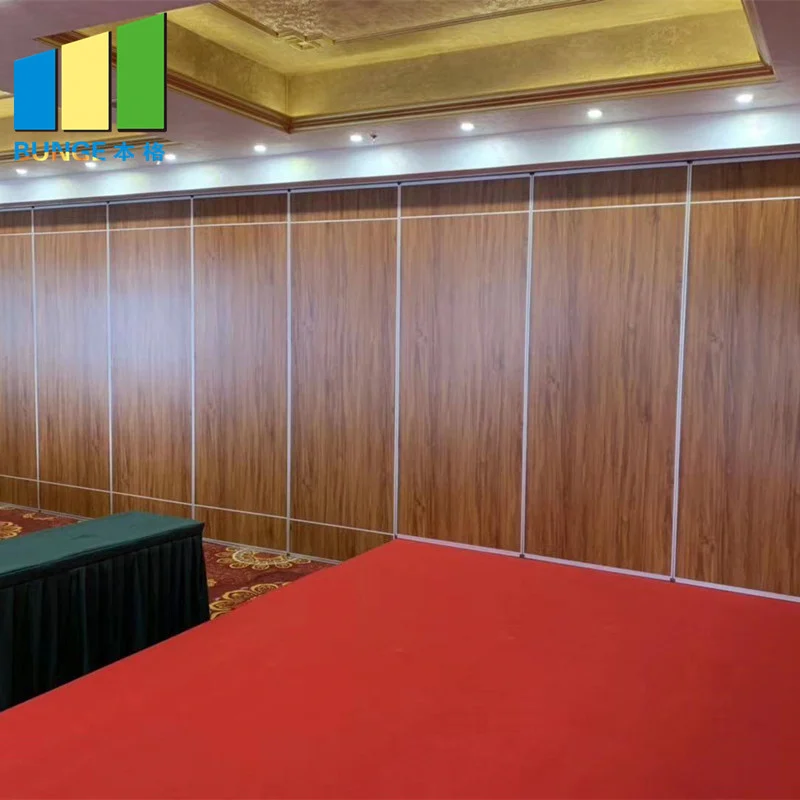

Aluminum Frame Acoustic Operable Sliding Partition Wall Divider for Multi-Function Room
Sliding wall dividers description
Our aluminum sliding wall dividers accessories are custom for each client and project,and they are also made of superior material.Especially for the tracks and the wheels,they are of good quality and they are retractable.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe, comfortable and low carbon emission way of life on movable and operable partition system.
Retractable top and bottom seals ensure effortless movement of sliding wall divider panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Technical Information
| Model | 65 sliding wall dividers |
85 sliding wall dividers |
100 sliding wall dividers |
Ultra-high system sliding wall dividers |
| Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm | 680mm-1230mm | 680mm-1230mm |
| Panel Height | 2000mm-4500mm | 3000mm-6500mm | 5000mm-8500mm | 7000mm-17000mm |
| Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
32db | 45db | 60db | 60db |
|
Hermetic flex distance(mm) |
45mm | 45mm | 45mm | 60mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 | 40,45,48,55 | 60,60,60,60 |
| Faceplate Material |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
| Panel Surface Finish |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
How to choose the best quality sliding wall dividers?
1. Construction of the project As long as rails are installed on the grid or floor, there is no need to install rails on the floor, and the floors of star hotels and catering restaurants will not be damaged.
2. The selection of high-quality activity partition screen hanging wheel is carefully selected, a good hanging wheel is very durable, the number of uses can also reach more than 100,000 times.
3. High-quality sliding wall dividers screen are solid and reliable. Pulled into the wall to lock, can withstand a lot of impact force, which means that you do not need to worry about drunk customers or other sudden impact problems.
4. The sliding wall dividers tightly sealed, excellent sound insulation and use of green materials, can ensure that the rest of the box when receiving customers without interference.
5. The fire protection materials selected have exceeded the national fire protection level.
6. The sliding wall dividers decoration is various, the range of finishes is wide, there are wallpaper, soft cloth (leather) package decoration surface, different veneer decoration creates different visual effects, and the hotel synthesizes a beautiful and concise overall environment.
7. BUNGE sliding wall dividers factory production of hotel sliding partition is flexible and easy to use, and it can quickly split the hotel space.
8. The emergence of sliding wall dividers helped the hotel to make full use of the limited space and saved the customer many wasted resources.
Specifications
| Product Name | Sliding Wall Dividers |
|---|---|
| Application | Function Room Dividers |
| Thickness | 65 Mm(2 9/16 Inch) |
| Function | Divide The Space |
| Weight | 25-35 KG/m² |
| Pass Door | Single Or Double |
| Highlight | sliding folding partition , sound proof sliding partitions |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO 9001 |
| Model Number | 65 mm sliding wall dividers |
| Packaging Details | Paper carton, outside with wooden box |
