Product Description
Interior Design Wooden Movable Sound Proof Partition walls
BUNGE Movable Partition Walls Details
|

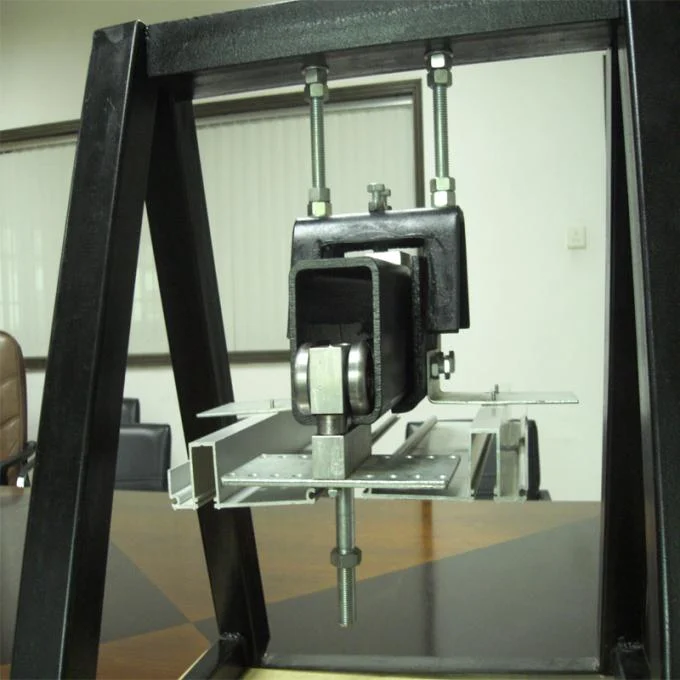

Panel Suspension
|
Top hunge system without the need for a floor track.
|
||
|
Panel Width
|
Each panel 600mm-1200mm.
|
||
|
Track
|
Aluminum OR Steel Track
|
||
|
Roller on panel
|
Single or Double Roller
|
||
|
Panel Frames
|
Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
|
||
|
Top&bottm seals
|
Top and bottom pressure retractable seals ensure effortless moved and locked.
|
||
|
Module
|
700mm – 1200mm maximum.
|
||
|

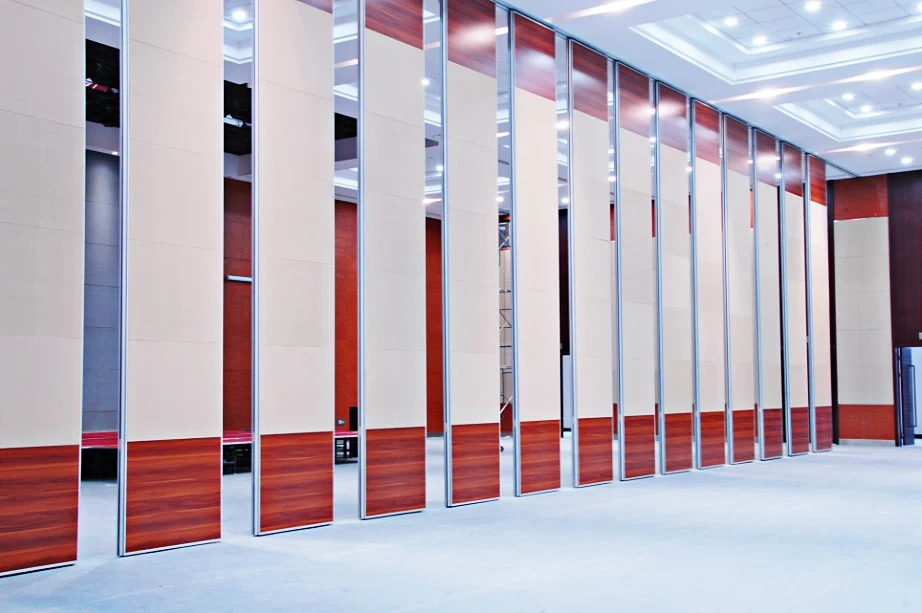

Panel stacking
|
Numerous panel stacking options for complete flexibility.
|
||
|
Panel face
|
MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
|
||
|
Finishes
|
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.
|
||
Panels:

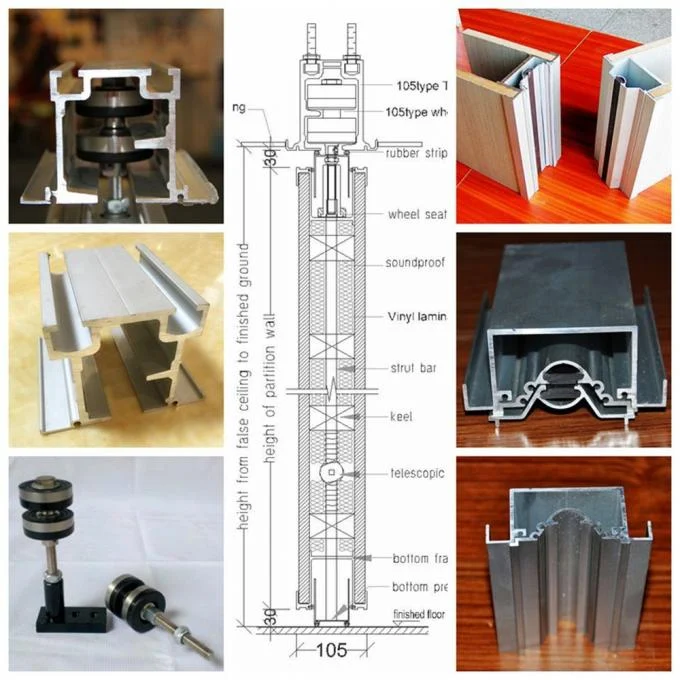

The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
- Basic Panels shall be equal in module.
- Approx. Weight kg/ square metre : 32 kg
- Maximum height : 6000mm.
Panel Surface Finish : The panel surface will be as per the clients requirement finished either in Sliwal factory – China or by others . The popular finish such as :laminate,veneer,melamine,fabric etc.
Rectractable mechanism: The top and bottom rail of each panel shall incorporate an extruded aluminium box section mechanical seal manually operated by a handle inserted in the panel stile, turning the handle through 180 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode. Single crank type mechanisms shall activate floor and head seals.
Seals : vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminium profiles to enhance acoustic performance of the wall.
Stacking : The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
STC Privacy Afforded
• 25 Normal speech easily understood
• 30 Normal speech audible, but unintelligible
• 35 Loud speech understood
• 40 Loud speech audible, but unintelligible
• 45 Loud speech barely audible
• 50 Shouting barely audible
• 55 Shouting not audible
The intended use of the building or room versus the use of the surrounding areas will, in part, determine the amount of sound control you need. For example, a folding wall dividing a high school science classroom from a student lab doesn’t need to have as good a barrier as an movable partition between meeting rooms in a hotel.
Specifications
| Application | Hotel,banquet Hall |
|---|---|
| Style | Sliding |
| Position | Interior |
| Material | MDF + Aluminum |
| Panel Width | 500 Mm--1220 Mm |
| Feature | Sound Proofing |
| Height | 6 Meters |
| System | Hanging System |
| Product Name | Movable Partition Walls |
| Thickness | 85 Mm(3 1/4 Inch) |
| Highlight | movable partitions systems , acoustic movable walls |
Product Details
| Place of Origin | Guangdong |
|---|---|
| Brand Name | BANGE |
| Certification | ISO9001 |
| Model Number | 85 mm movable partition walls |
| Packaging Details | Carton package, MDF batten on four section sides , foam board on both front face. |
