Product Description

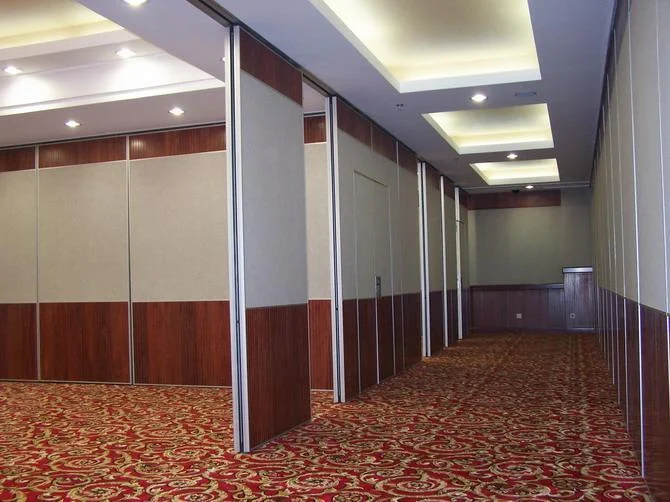

Acoustic Room Dividers Movable Wall Hardware Aluminium Track Folding Partition Wall
Specification:

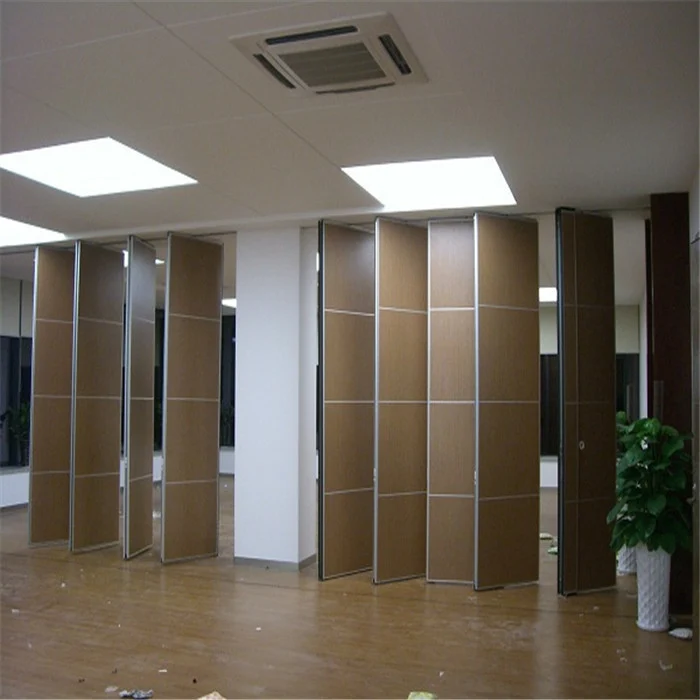

Acoustic room divider, Movable Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.

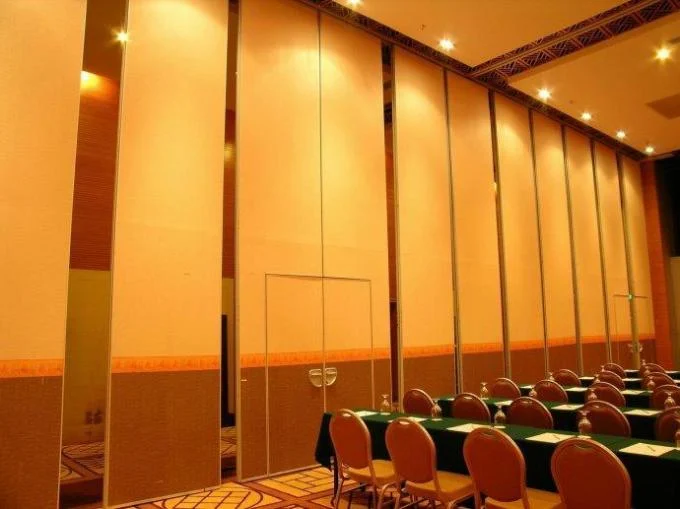

Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.
The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).
Also available with 30 and 60 minute fire resistance.
Manual or Semi automatic operation.
Acoustic Room Divider Advantage:
Individual panels that can be stored away for Maximum space usage.
Operable top and bottom seals for effortless operation.
Aluminum frame construction for enhanced acoustics.
The system offers various levels of sound reduction.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
Top hanging and no floor track.
Extensive range of surface finishes can be available.
Aluminium profile details:
Track: The tracks are made from extruded 6063 – T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The Panels will be made from 12 mm MDF boards and shall be 100 mm thick and 1230 mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Panel Surface Finish:The panel surface will be as per the clients requirement finished either in factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Seals: Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 22.5 MM or 23 mm.
Acoustic room divider application:

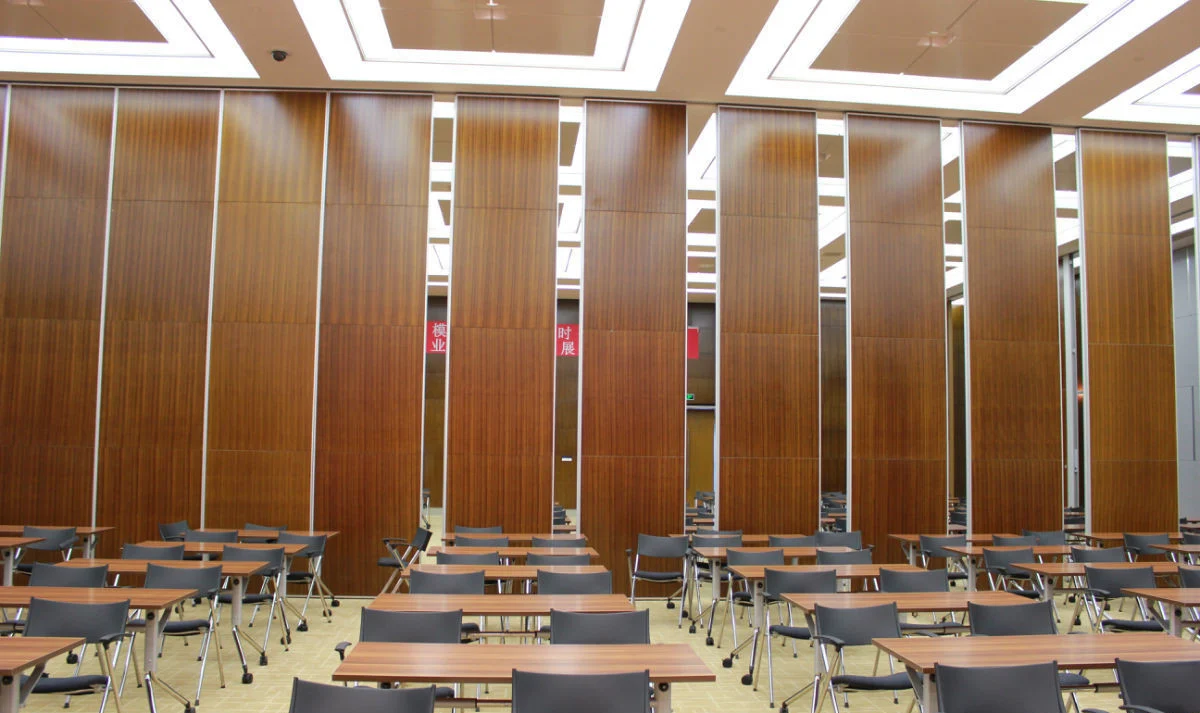

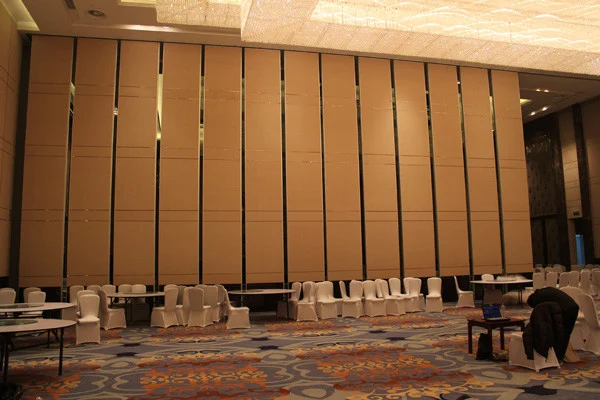

The operable wall series is used wherever room space needs to be fully utilized. Hotels, conference centers, educational establishments, offices, training areas, etc. can all benefit from the flexibility of Dividers operable walls.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door | ||
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
|
Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Specifications
| Product Name | Acoustic Room Divider |
|---|---|
| Height | Less Than 4 M |
| Width | 800 /1200 Mm |
| Thickness | 65 Mm |
| Material | Melamine,fabric,leather And Etc |
| Application | Banquet Hall,hotel,conference Room |
| Color | Custom Design Color |
| Panel Style | Slidng And Folding |
| Our Service | OEM Service |
| Highlight | sound proof room divider , banquet hall room dividers |
Product Details
| Place of Origin | China,Guangzhou |
|---|---|
| Brand Name | BUNGE |
| Certification | ISO9001 |
| Model Number | Series 85 mm acoustic room divider |
| Packaging Details | Carton package, MDF batten on four section sides ,foam board on both front face. |
