Product Description

Acoustic Moveable Foldable Sound Proof Partition Walls for Conference Room

Product detail
Fire Prevention Portable Simple Operation Portable Partition Walls India

EBUNGE movable acoustic operable partitions are used to divide meeting rooms, conference rooms,

restaurant and banquet halls etc., it provides convenient and effective space management solutions,

the panels move on a ceiling track with no requirement of floor guides or rails, its has been extensively

applied to hotel industry.
EBUNGE offers products and service with the end user in mind. We build in features that provide benefits

to the owner over the life of the partition. Features such as protective edge trim will keep your partitions

looking good for many years to come.

The movable partitions consist of a series of interlocking flat panels and the fast set retractable top and

bottom seals provide the easiest in-field operation, a simple half-turn of the waist high removable handle

extends or retracts the sound seals.
The quick set retractable seals save the owner a great deal of time during setup and take down Time means

money, especially for clients that rent their facilities for meetings and other functions.
EBUNGE provides panel finishes such as melamine, fabric, leather, wood veneer, high-pressure laminate or other

custom surfaces, panels also be supplied unfinished(raw mdf or plywood) for field decoration to compliment the

building environment.

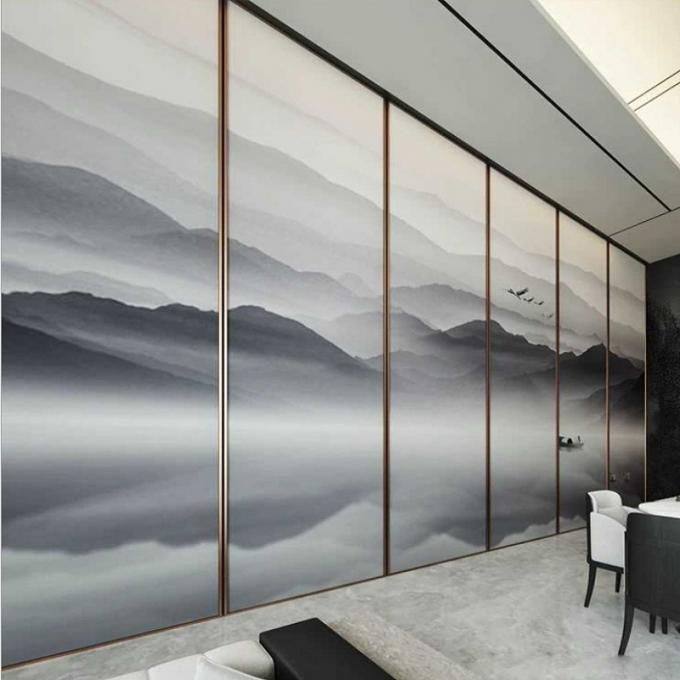

Acoustic Moveable Foldable Sound Proof Partition Walls For Conference Room 0



Technical data of Type 80 movable partition:

Model


Weigh
(kg/m)

Fire
rating
(min)

STC
Perfor
mance
Specification
Thick
ness
(mm)

Width
(mm)

Height
(mm)
Top seal(mm)
/Pressur
(kg)
Bottom
(mm)
/Pressure
(kg)
LCP
stretch
(mm)
E80-40
30
60
40db
80
680-1212
2000-5500
22.5/35
22.5/35
140
E80-45
38
60
45db
80
680-1212
2000-5000
22.5/35
22.5/35
140
E80-48
47
60
48db
80
680-1212
2000-5000
22.5/35
22.5/35
140

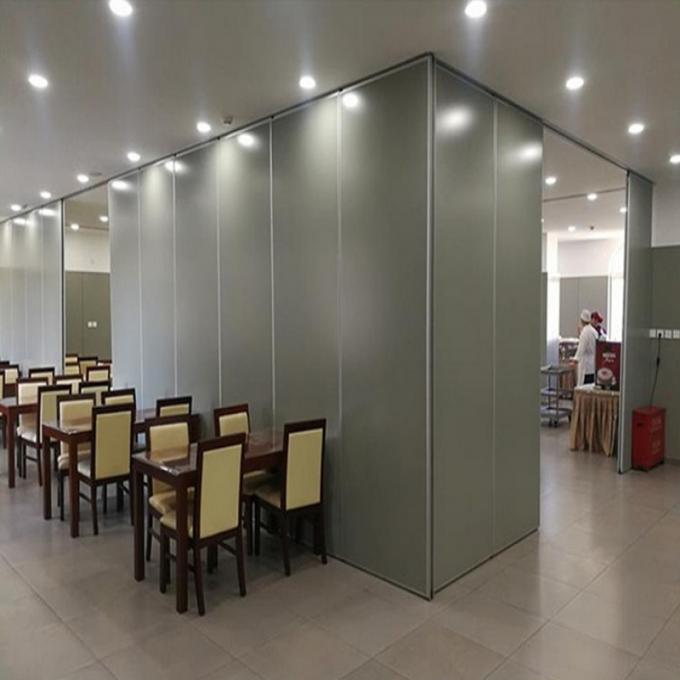

Acoustic Moveable Foldable Sound Proof Partition Walls For Conference Room 1








EBUNGE’s double,corrosion-resistant aluminum track systems are easy to install and easier to intain.
Extruding enables each section to have a uniform shape for superior end-to-end alignment.
Each capacity-certified track is of extruded architectural grade clear anodized 6063-T6 aluminum


To seal the corner,Egood gets its own design about specially developed conically shaped corner pieces

that fit closely together,with high density,strong collision,is not easily deformed even at temperature – 100℃.

Compared with other same industry manufacturers,Egood has great superiority in both sealing and noise

insulation factor for its products.







Specifications

Product NamePartition Wall
MaterialMDF With Melamine
ColorCustomizable
FunctionMova Sliding Partition
ServiceODM OEM
FinishMelamine Thickness
AdvantageSoundproof
PackageStandard Exported Package
Highlightmovable walls on wheels , movable partitions systems

Product Details

Place of OriginGuangzhou China
Brand NameEBUNGE
CertificationISO900
Model Number80 MM partition wall
Packaging Detailswooden box package
