Product Description
Acoustic Movable Wall Folding Sliding Partition Walls for Hotel Banquet Hall Ballroom
Sliding partition walls for hotel features:
1>Sliding partition walls for hotel are modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.
2> The sliding partition walls for hotel board is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the sliding partition walls board for hotel can be stored in may different ways.
4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.
5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.
6> The operation ways is much easier, it’s better than the old ways which was use spring before.

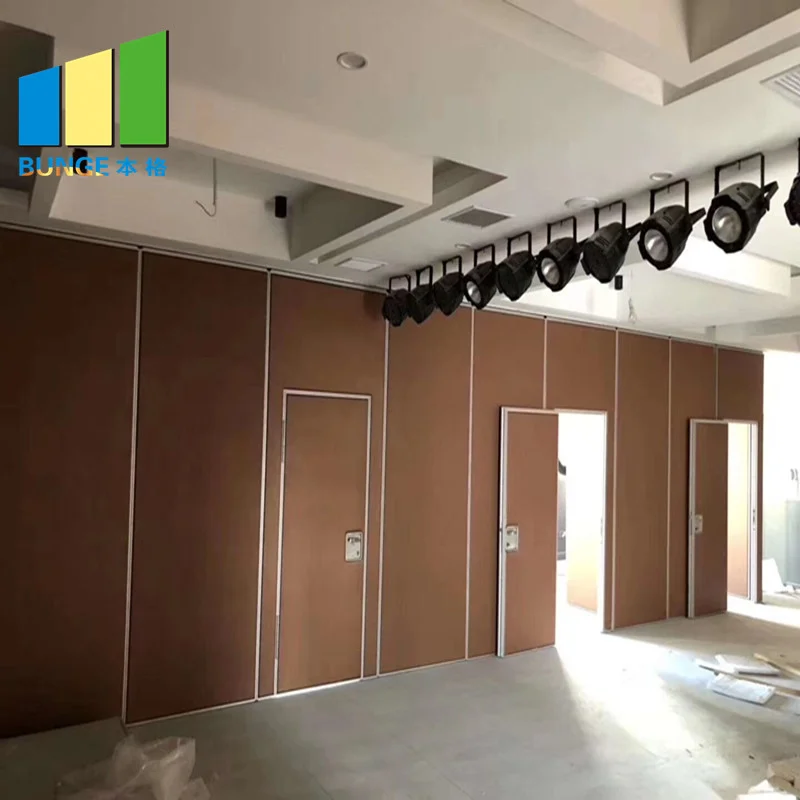

7> We can add single or double doors on the board for convenience.
8> We have many different finish to meet customer different requirement and get different decoration effect.
Technical Information
| Model | 65 sliding partition walls for hotel |
85 sliding partition walls for hotel |
100 sliding partition walls for hotel |
Ultrahigh sliding partition walls for hotel |
| Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm | 680mm-1230mm | 680mm-1230mm |
| Panel Height | 2000mm-4500mm | 3000mm-6500mm | 5000mm-8500mm | 7000mm-17000mm |
| Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
32db | 45db | 60db | 60db |
|
Hermetic flex distance(mm) |
45mm | 45mm | 45mm | 60mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 | 40,45,48,55 | 60,60,60,60 |
| Faceplate Material |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
| Panel Surface Finish |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Sliding partition walls for hotel details
Brand Name:BUNGE
Year of Establishment:2011
Model Number:85 mm sliding partition walls for hotel.
Packing Details:Carton package,outside with wooden boxes.
The sliding partition walls for hotel shall be top-supported, manually operated panels stacked in an area nominated in the plans. When closed, the sliding partition walls for hotel shall provide a complete sound retardant barrier. No floor track shall be used. The tracks are made from extruded anodized aluminum. The sliding partition walls for hotel track housing shall utilize grooves and interlocking steel pins for better alignment of adjacent track section, and shall be reinforced overhead by drop rod brackets.
Specifications
| Product Name | Sliding Partition Walls For Hotel |
|---|---|
| Application | Banquet Hall Partitions |
| Surface Material | Laminate Panel, Melamine Panel, Fabric |
| Thickness | 65 Mm(2 9/16 Inch) |
| Weight | 25-35 KG |
| Track Material | Aluminum Alloy |
| Highlight | sliding folding partition , sound proof sliding partitions |
Product Details
| Place of Origin | Guangzhou, China |
|---|---|
| Brand Name | EBUNGE |
| Certification | ISO 9001 |
| Model Number | 65 mm sliding partition walls for hotel |
| Packaging Details | Paper carton, outside with wooden box |
