EBUNGE Partition Solution

Acoustic Hanging System Sliding Partition Walls For Multi-Purpose Hall

High quality Acoustic Hanging System Sliding Partition Walls For Multi-Purpose Hall from China, China's leading product market acoustic folding partition product, with strict quality control soundproof folding partition factories, producing high quality soundproof folding partition Products.

Request A Quote

Product Description

Acoustic Hanging System Sliding Movable Folding Partition Walls for Multi-Purpose Hall



Movable and Operable Partition System Usage Range

1. Movable and folding partition wall system is modernized decoration style. It can separate the space speedy and conveniently. And it has sound insulation and heat insulation and fireproof function.


2. Movable and folding partition walls system is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.


3. The folding partition walls finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in many different ways on movable and operable partition system.

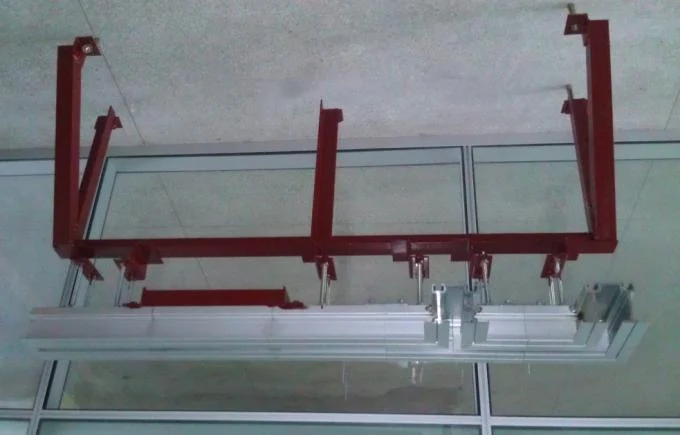

4. The folding partition walls doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style on movable and operable partition system.


5. We can add single or double doors on the board for convenience on movable and operable partition system.

Acoustic Hanging System Sliding Partition Walls For Multi-Purpose Hall 0



Easy Parking on Movable and Operable Partition System

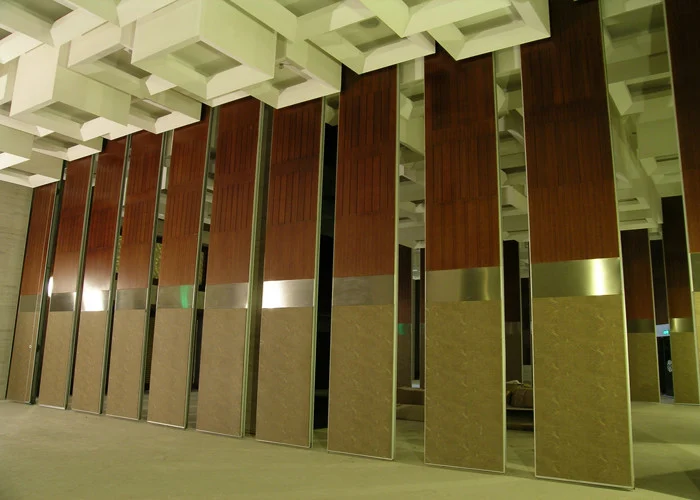

In their stacked position, the folding partition walls panel form compact package and can be accommodated in the smallest of spaces depending on the room situation. The low weight of the panel and the associated structural advantages are particularly noticeable here. The four standard stack or parking track systems offer convenient operability with a minimum of noise from the individual panels as they slide into position on movable and operable partition system.We offer a range of suspension systems to suit each installation and application.


According to the project’s actual size, combined with precise design of the auxiliary track, the movable partition can fold orderly, flexible and diverse collection.

Acoustic Hanging System Sliding Partition Walls For Multi-Purpose Hall 1

PANEL TYPE 65TYPE(65mm thickness),85TYPE(85mm thickness),100TYPE(100mm thickness)
Sound Rating 38,40,44,47,50,53,58dB Rw
Track+ Type-65,Type-85 and Type-100 track
Carriers Single-wheel or double carriers for centre stacking and multi-directional carriers for remote stacking
SEALS Retractable top and bottom seals
Closure Adjustable jambs and Expanding Panels

Finishes

Panel Frame

MDF or as your requirement

Aluminum frames: Clear anodized.

Aluminum tracks: White powder coated



Application

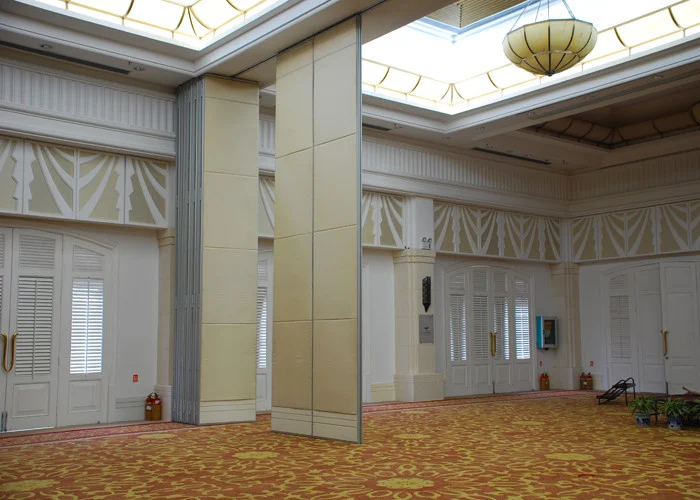

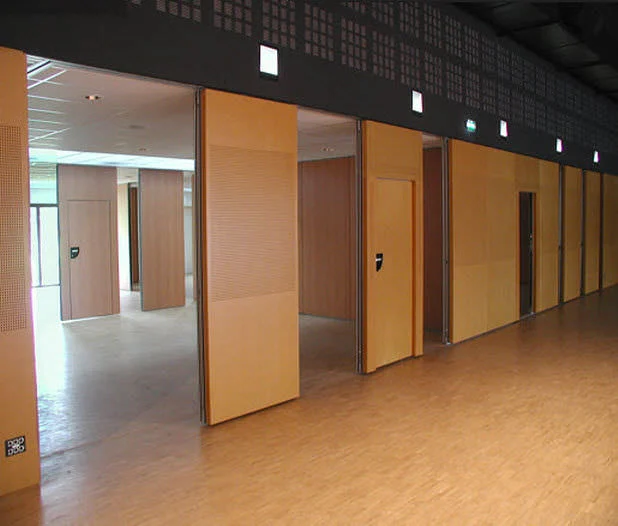

Our products (Movable Folding Partition Walls) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .

Acoustic Hanging System Sliding Partition Walls For Multi-Purpose Hall 2

Specifications

SampleFree
MaterialMelamine
Door MaterialMelamine Board
Panel Width500 Mm--1220 Mm
Product NameFolding Partition Walls
PositionInterior
Open StyleSliding
ApplicationMulti-Purpose Hall
FeatureSound Proofing
ColorAccept Customized
Size85 Mm(3 1/4 Inch)
Highlightacoustic folding partition , soundproof folding partition

Product Details

Place of OriginGuangdong
Brand NameBANGE
CertificationISO9001
Model Number85 mm folding partition walls
Packaging DetailsCarton package, MDF batten on four section sides , foam board on both front face.
