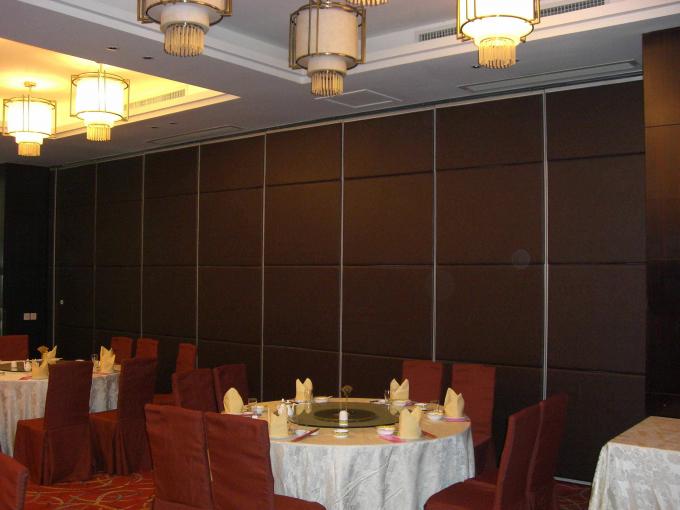

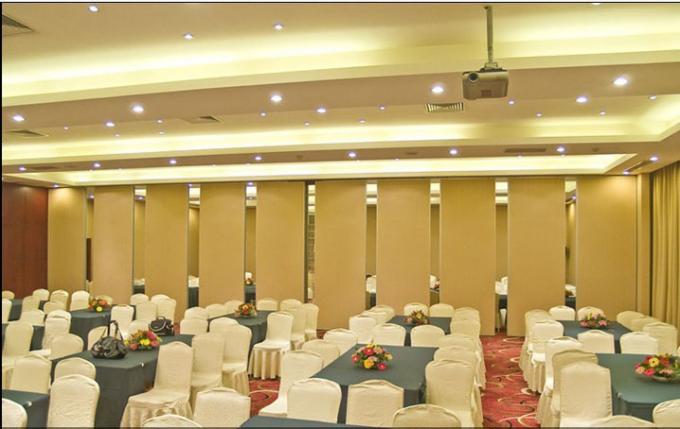

4m Height Aluminium Track Sliding Partition Walls / Movable Room Dividers

Folding Wall Banquet Hall Removable Sliding Partition Walls

Description:

The partition wall is a good consideration of the propagation of sound waves, greatly improving the soundproofing of the partition. Partition models 65 type (65mm thick), 85 type (85mm thick), 100 type (100mm thick), ultra-high type, partition reference plane material gypsum board, fiber board, glass magnesium board, color steel plate, sound-absorbing board, A variety of panels, such as melamine panels, are available for selection. The structure and frame are made of 6063-T6 reinforced aluminum alloy.

The soundproofing performance of the partition is significant. After laboratory tests, the air sound insulation can reach up to RW=53dB. The panel material and internal soundproof materials used in the fire-proof partition are all flame-retardant materials. Its fire safety index complies with the Chinese GB5464 standard and the G50222-95 standard. The overall fire resistance performance can reach up to 60 minutes. Internally-filled acoustic fiberglass is a lightweight, sound-insulating, and economical wall-filling material. The product uses an adhesive to cure the material to ensure its extension characteristics, effectively preventing the occurrence of falling phenomenon.

Technical information:

Feature:

1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;

2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;

3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53dB;

4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;

5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;

6. Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect.

Installing details:

1. As shown on the drawing, check the track that the track parts are assembled on the floor before installation.

2. Mark the track line and place the bracket in a specific position.

3. Mount the rail brackets to the ceiling.

4. Check if the mobile partition is rigidly fixed on the track. When the rails and brackets must be loosely stored in the storage area, so that the bracket plate can be moved to other places.

5. At the end, measure the proper location of the storage track before adjusting the main track facility. This is very important for the intersection placement.

Pass door information:

The partition of the door, a kind of door, is used in the decoration of partitions; it plays the role of disassociation, guidance, and transition in the two separate spaces; it is the link of connecting space.

There are many kinds of partition doors, including closet doors, sliding doors, folding doors, sliding doors, moving track doors, sliding doors in closets, partition sliding doors, folding sliding doors, swing doors, sliding doors, cabinet doors, etc.

The most commonly used in high compartments and glass partitions are tempered glass doors, split spring doors and hinged doors. Partition doors are used in many places. This is also a factor in the various types of barriers. For example, it can be seen in the hotel’s high partition, office partition, glass partition system partition wall, mobile partition. In short, as long as it is involved in construction, urban planning, building materials, decoration and other industries, most of the needs will be applied to the partition gate.
