3 m Height Movable Partition Walls Glass Wall Office Sliding Frameless Glass Folding Door

High quality 3 m Height Movable Partition Walls Glass Wall Office Sliding Frameless Glass Folding Door from China, China's leading product market movable walls on wheels product, with strict quality control movable partitions systems factories, producing high quality movable partitions systems Products.

Request A Quote

Product Description

Movable partition walls glass wall office sliding frameless glass folding door

Specifications

1) Interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.

2) To ensure additional friction connection, shall be integrated with magnetic strip.

3) Easy element adjustment after installation.

4) Sliding glass partition wall Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers. 5) Surface panel shall be of 9 mm or 12 mm tempered glass.

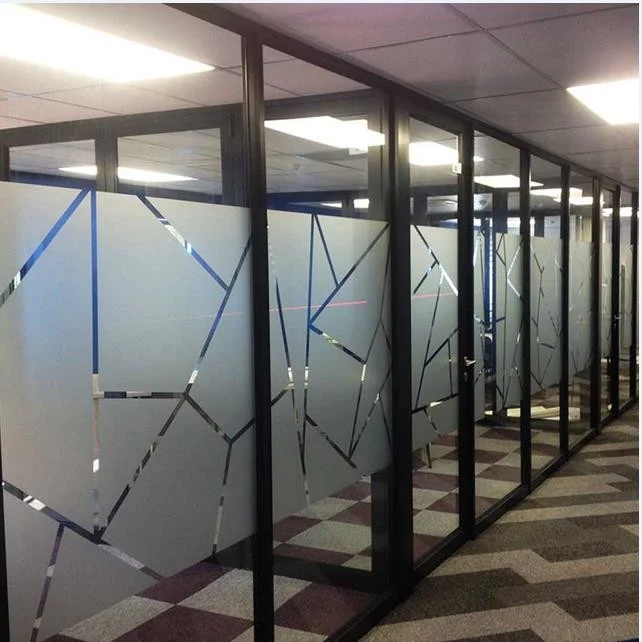

3 m Height Movable Partition Walls Glass Wall Office Sliding Frameless Glass Folding Door 0



Technical parameters:

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 65mm 80mm / 85mm 100mm
Panel height Up to 4000mm Up to 6000mm Up to 18000mm
Max height 4000mm 6000mm 18000mm
Panel width 600-1230mm 600-1230mm 600-1230mm
Frame construction Aluminum frame Aluminum frame Aluminum frame
Face material 9mm 9mm / 12mm 12mm
Fire safety Optional Class I or O Optional Class I or O Optional Class I or O
Vertical profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles Aluminum anodised with sealing profiles
Retractable seals Aluminum black with
double rubber seals
Aluminum black with double rubber seals Aluminum black with double rubber seals
Operation of seals Manual, with supplied
operating handle
Manual, with supplied operating handle Manual, with supplied operating handle
Locking Optional lock to pass doors Optional lock to pass doors Optional lock to pass doors
Pass doors Single open in panel or
double open in two panel
Single open in panel or double open in two panel Single open in panel or double open in two panel
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx30-48kg/sq M
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

3 m Height Movable Partition Walls Glass Wall Office Sliding Frameless Glass Folding Door 1

Feature:



1. Floor less suspension: There is no track on the floor, just install the track on the ceiling;

2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;

3. Compartments environmental protection: the compartment effect is good;

4. Insulation and energy saving: excellent heat insulation performance, according to different occupancy rates, divide the large rating into small spaces to reduce air conditioning power consumption;

5. High-efficiency fire prevention: The production of high-efficiency fireproof materials, and good fireproof performance;

6. Beautiful and generous: any surface decoration, can be combined with the indoor decoration effect.

3 m Height Movable Partition Walls Glass Wall Office Sliding Frameless Glass Folding Door 2



Application:



Hotel on the hanging rail activities partition products on the hotel hanging rails off the general framework of the aluminum frame material processing and production, internal partition expansion board, suitable for high-end hotel private rooms, banquet halls, conference rooms, showrooms, mufti-function Hall and so on.



The sliding door base board is a MDF board or glass magnesium board. The decorative surface can be leather (cloth art) hard bag, soft bag, wallpaper, color steel veneer, hollow veneer and so on.

Specifications

Product NameGlass Sliding Partition Walls
MaterialAluminum And Tempered Glass
HeightLess Then 3 M
Width500-1200 Mm
Thickness36mm Aluminum Frame
UsageRoom Dividing
Glass Thick10mm/12mm
Highlightmovable walls on wheels , movable partitions systems

Product Details

Place of OriginGuangzhou,China
Brand NameEBUNGE
Model NumberSeries 36 mm glass sliding partition walls
Packaging DetailsCarton package, MDF batten on four section sides ,foam board on both front face.
