EBUNGE Partition Solution

10MM Folding Glass Room Movable Wall Panels With Sliding Door 500 / 1230mm Width

Explore 10MM Folding Glass Room Movable Wall Panels With Sliding Door 500 / 1230mm Width for overseas B2B partition projects. Share the application, opening dimensions, quantity and preferred finish with EBUNGE for project review.

Request A Quote

Product Description

10MM Folding Glass Room Partition Wall System With Sliding Door



Description:



The effective division of space sometimes requires utmost flexibility.Whether the requirement is to divide a teaching area, temporarily partition a conference suite, or simply create extra rooms out of one large space, the movable walls.Movable walls, operable walls, sliding folding partitions – this group of products is synonymous with one name; Dividers.

Part of the Envirohold Group of companies, Dividers is one of Europe’s leading manufacturers of movable wall systems.

Dividers provides unrivalled experience in the design and manufacture of space utilisation products.Alongside Dividers operable walls,the Envirohold family of products also include, Sesam hinged partitions and Modernfold concertina partitions, along with a range of glass movable walls and industrial doors.

This comprehensive range of movable wall and door systems are manufactured at the group’s three European plants based in the UK and Sweden.

Whether your essential requirement is sound attenuation, ease of operation,or aesthetics, there is a solution in the Envirohold family of movable wall companies





EBUNGE BG-65# Series



Base board
Hoisting weight (kgs/㎡)
STC (db)
Structure material
Top/Bottom Telescopic mechanism(mm)
Width(mm) Min/Max
Height(mm) Min/Max
Thickness (mm)
Fire Safety
Plywood MDF
22-35kgs/㎡
32db
Aluminium
22.5mm
500 / 1230mm
2000 / 4000mm
65mm
optional class o
Melamine Surface
Fabric/Leather Surface
32db / 35db


                                                                EBUNGE BG-85# SERIES

Base board
Hoisting weight (kgs/㎡)
STC (db)
Structure material
Top/Bottom Telescopic mechanism(mm)
Width(mm) Min/Max
Height(mm) Min/Max
Thickness (mm)
Fire Safety
Plywood MDF



28-40kgs/㎡
38db
Aluminium
22.5mm
500 / 1230mm
2000 / 6000mm
85mm
optional class o
Melamine Surface



Fabric/Leather Surface
38db / 42db


                                                                EBUNGE BG-100# SERIES

Base board
Hoisting weight (kgs/㎡)
STC (db)
Structure material
Top/Bottom Telescopic mechanism(mm)
Width(mm) Min/Max
Height(mm) Min/Max
Thickness (mm)
Fire Safety
Plywood MDF
35-45kgs/㎡
45db
Aluminum
30mm
500 / 1230mm
6000 / 15000mm
100mm
optional class o



Melamine Surface



Fabric/Leather Surface



45db / 52db







Details of 10MM Folding Glass Room Partition Wall System With Sliding Door

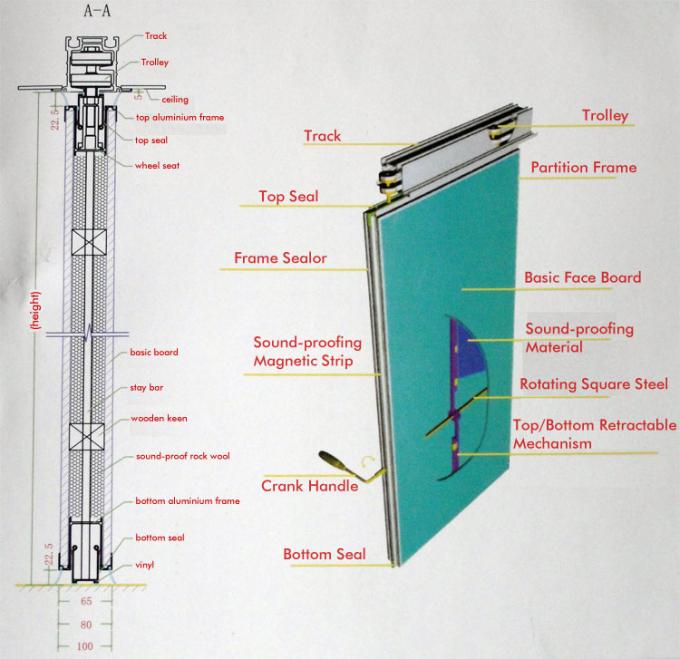

10MM Folding Glass Room Movable Wall Panels With Sliding Door 500 / 1230mm Width 0



Feaures :



1. No floor track, it relies solely on the ceiling mounted track.

2. Stability and Safety – The solid design and build assures you of reliable stability.

3. Noise Suppression – The sound absorbing wall cuts sound levels by up to 50dB.

4. Nsulation Value – The materials used also work as a thermal barrier, saving energy costs by lowering air conditioning or heating needs.

5. Fire Safe – Made of flame retardant materials, also serves as a fire protection boundary.

6. Attractive – The design looks great as is, and can easily be redecorated to suit your custom needs.

7. Ease of Use – Moving and stowing the Movable Partition can easily be done by a single person.

8. Compact – Stows neatly in a compact wall cabinet, and remains cleanly out of sight when not used.

9. Flexible Uses – Useful in many applications – Conference Rooms, Exhibition Rooms, Restaurants, Retail Shops, or Factories.

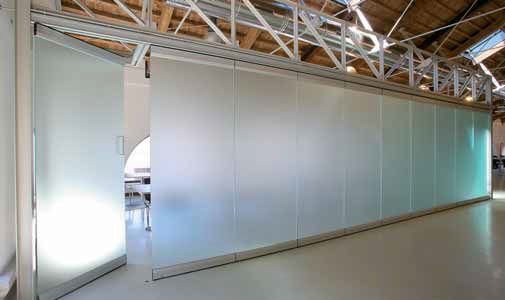

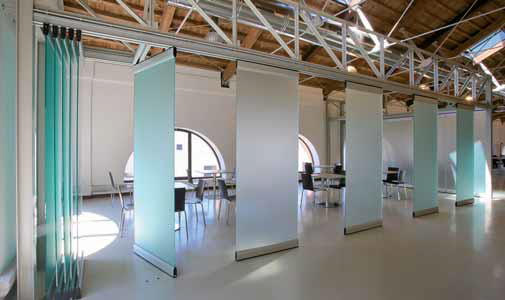

10MM Folding Glass Room Movable Wall Panels With Sliding Door 500 / 1230mm Width 110MM Folding Glass Room Movable Wall Panels With Sliding Door 500 / 1230mm Width 2









Specifications

Product Name10MM Folding Glass Room Partition Wall System With Sliding Door
MaterialMDF + Aluminum
ColorMulte Color
Width500 / 1230mm
Height2000 / 13000mm
STC Coeffcient32 / 53db
Key Words10MM Folding Glass Room Partition Wall System With Sliding Door
Highlightmovable walls on wheels , acoustic movable walls

Product Details

Place of OriginChina
Brand NameEBUNGE
CertificationSGS,CE etc.
Model NumberBG85 # movable partition wall
Packaging Details10MM Folding Glass Room Partition Wall System With Sliding Door : Carton package, MDF batten on four section sides ,foam board on both front face.
